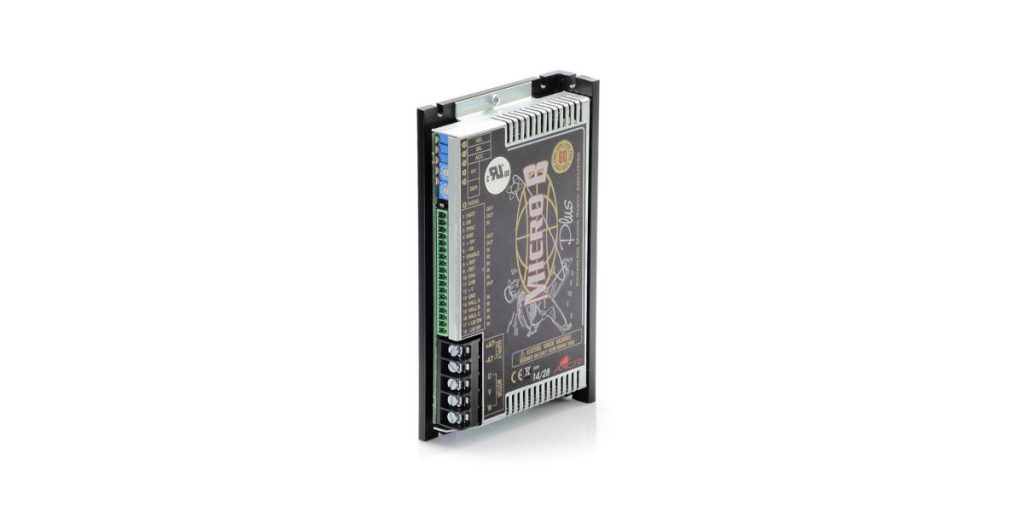

MicroB plus – panel mount brushless servo drives up to 4kW (MCBP)

Axor’s MicroB® servo amplifiers are ultra compact modules and ideal for incremental motion control, velocity loop and positioning systems which require fast response, high torque at low speed, smooth speed control and high reliability. Power supply from 24 to 200 VDC with output current up to 20 Amps continuous / 40 Amps peak. Tacho-generator, armature, […]

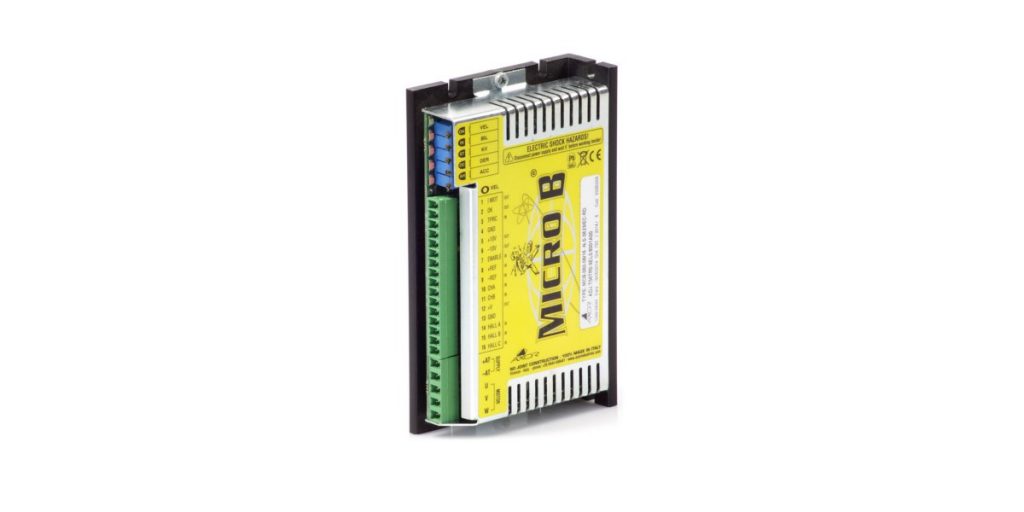

MicroB – panel mount brushless servo drives up to 800W (MCB)

Axor’s MicroB® servo amplifiers are ultra compact modules and ideal for incremental motion control, velocity loop and positioning systems which require fast response, high torque at low speed, smooth speed control and high reliability. Power supply from 24 to 80 VDC with output current up to 10 Amps continuous / 20 Amps peak. Tacho-generator, armature, […]

MackNANO miniature servo drive

Axor’s development team have used state of the art electronics, design and engineering techniques to produce an ultra compact drive unit, packed with features, that will change the market’s view of automation. The ultra compact dimensions and high performance at low cost, open up a multitude of new applications to highly efficient and precise servo […]

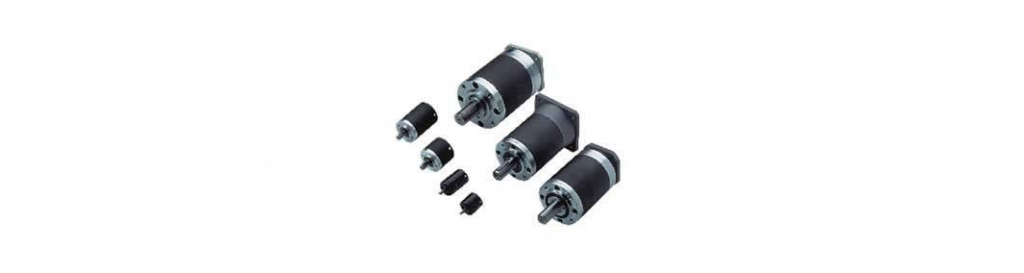

REX planetary gearboxes

Precision planetary gearboxes line for use with Sax 700, Dc servomotors and SUPER SAX and FAST-BACK brushless. For cycle and continuous operation. Click here

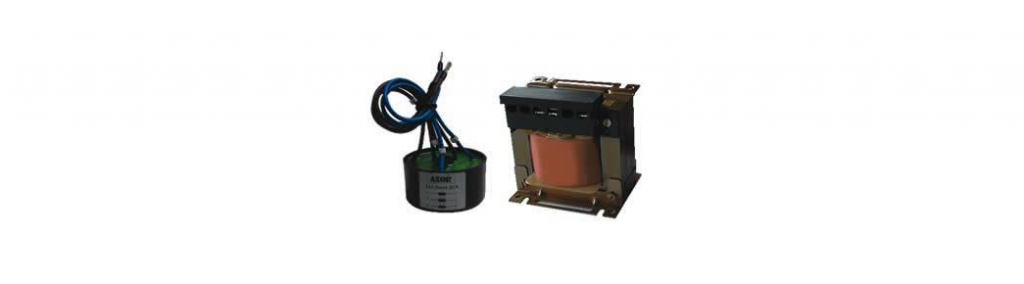

Motor Chokes LXT-LX

LXT: Single size choke (3 ph) to be coupled with Axor’s Brushless motors and drives. Necessary when using shielded power cables longer than 25m (to compensate cable capacity). LX: Chokes line specifically designed to be coupled with Axor’s Dc Brushed Servodrives (to compensate for insufficient internal inductance avoiding motor over-heating). Continuos current range up to […]

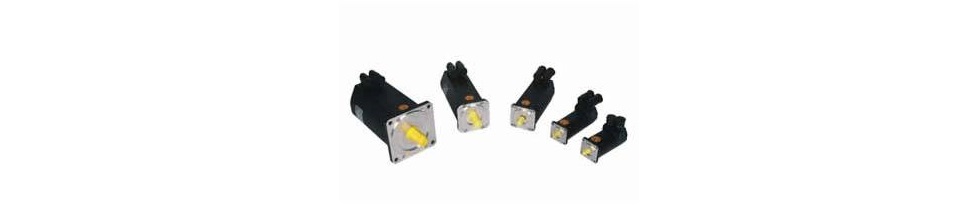

SuperSAX brushless servomotors

With a contemporary design and a torque range from 0.35 to 30 Nm the SUPER SAX® (6 poles) motors are an excellent solution for the most demanding needs of industrial automation, where very high performance axis control is required. The SUPERSAX brushless servo motors are compatible with the Metronix ARS 2000, LTi c-Line and other […]

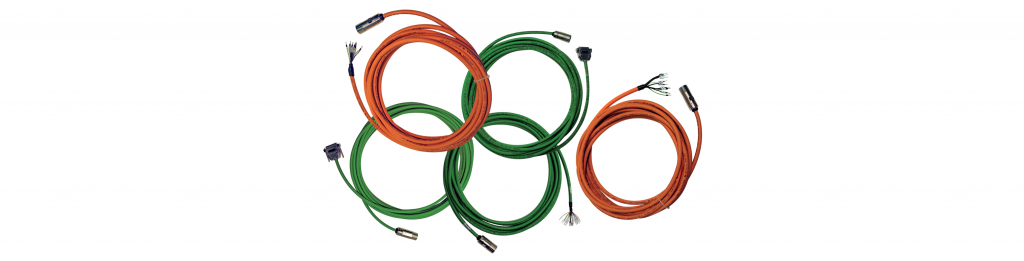

SuperSAX Motor Cables “CBLS”

Pre-assembled cables line for “plug-n-play” connections between SUPER SAX brushless servomotors and all AXOR servodrives. The CBLS cables have excellent mechanical characteristics and external shielding for disturbance protection. We Recommend the correct cables to: Avoid improper wiring connections Meet CE standards and proper shielding requirements Ensure increased system functionability  Cables

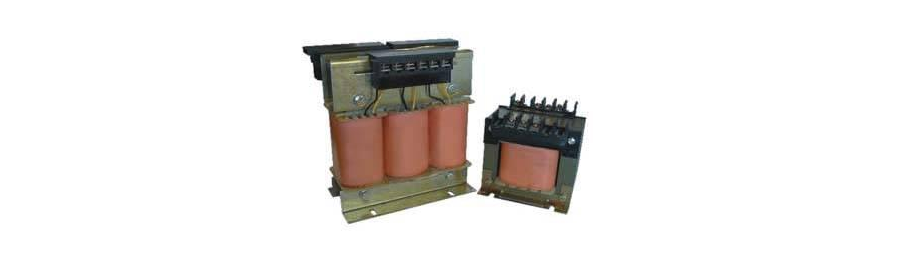

Single & three-phase Transformers TM-TT

Axor’s single and three-phase power transformers line specifically designed to supply Axor servo drives (all models and types). Power ranges from 100 to 8000 Va. The TM/TT transformer series is a standard heavy duty power transformer line to be coupled with our drives and mains filters (FRM/FRT type). They are, as standard, transformers without centre […]

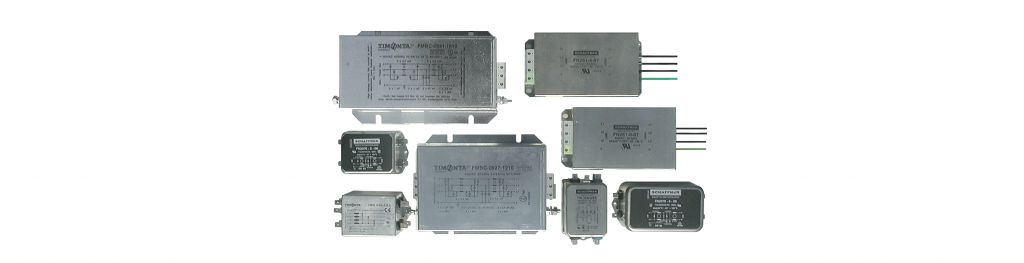

Single & three-phase Filters FRM-FRT

A number of Axor servo drives (brushless and DC) require EMI filtering of the input power leads to block conduced-type emissions from exiting onto the power supply line. The size of filter must be based on the size of transformers (single or 3-phase) used to supply the single or multi-axis servodrive control applications (see TM/TT […]

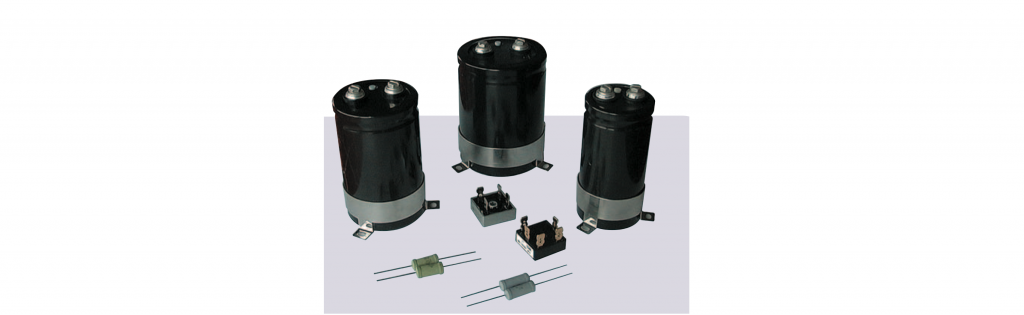

Power Supply Parts

Capacitors – Resistors – Power Bridges Power supply parts specifically for building self-made unregulated D.C. power supplies for most of Axor’s servodrives (Microspeed, Microspeed Plus, Micro B, Micro B Plus and Minispeed). With power supply parts it’s possible and easy to obtain unregulated DC power supplies at really effective costs. An accetable solution for complementing […]

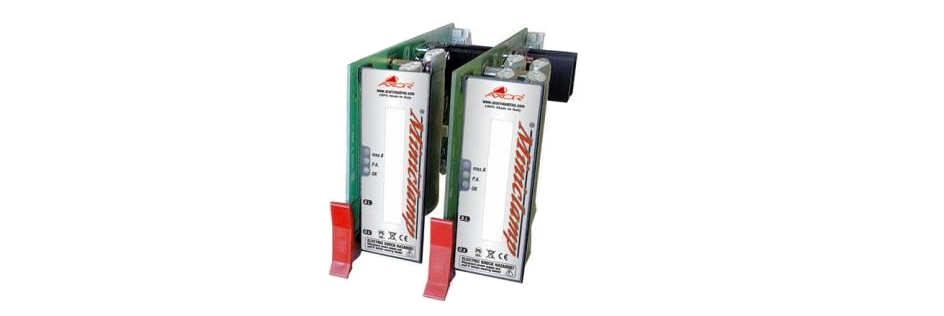

Dump Cards for DC Bus SHR

The MiniCLAMP® is a Eurocard formatted dumping card for monitoring DC Bus power supplies of multi-axis MiniSPEED® or B17® rack systems. The mechanical energy that comes back into the power supply’s bus capacitors during braking, charges them. To avoid the voltage reaching amplifiers over voltage the MiniCLAMP® discharges the energy on internal (up to 200 […]

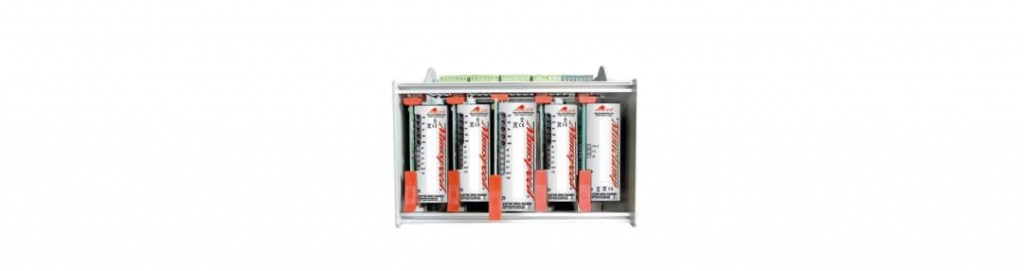

MiniSPEED eurocard rack system (RKM)

Axor’s RKM ® system is a technologically integrated drive solution. Up to 11 different axis modules can be integrated into a single RKM drive rack. The drives can be combined with power supplies and dump circuits. This system is cost effective, efficient, reliable and designed for high performance. Typical applications are: Systems where multiple axis are required, […]

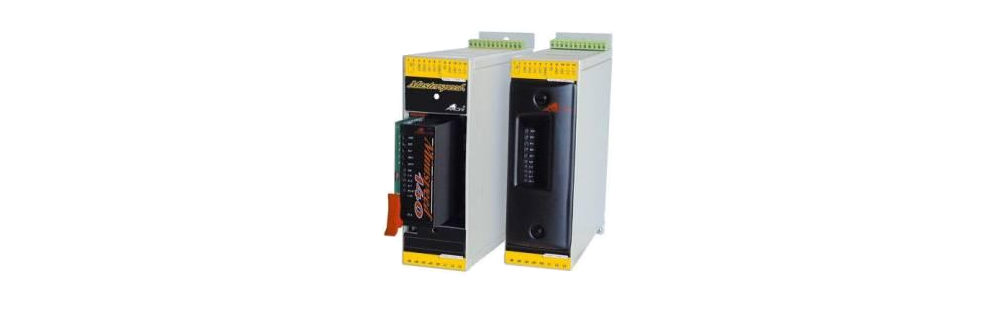

MasterSPEED drive module DC servo up to 5kW (MTS)

The MasterSPEED® servodrives come complete with their own power supply, regenerative circuit and detachable plug-in terminals for easy installation. The modular format makes them ideal for applications from 1 to 3 axes. Power supply from 44 to 145 VAC, output current up to 25 Amps nominal and 50 Amps peak. If required, fan cooling is […]

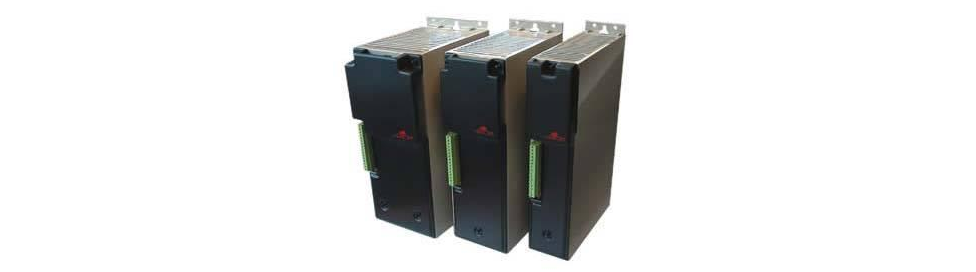

CD180 drive module DC servo up to 9kW

Axor’s CD 180 four quadrant servo-drive comes complete with its own power supply, regenerative circuit and internal fan cooling for a power range up to 50A continuous, 180Vdc. Because of the internal generation of the auxiliary voltages, only a three phase transformer with one secondary is enough for their supply. Auto transformers are also allowed. […]

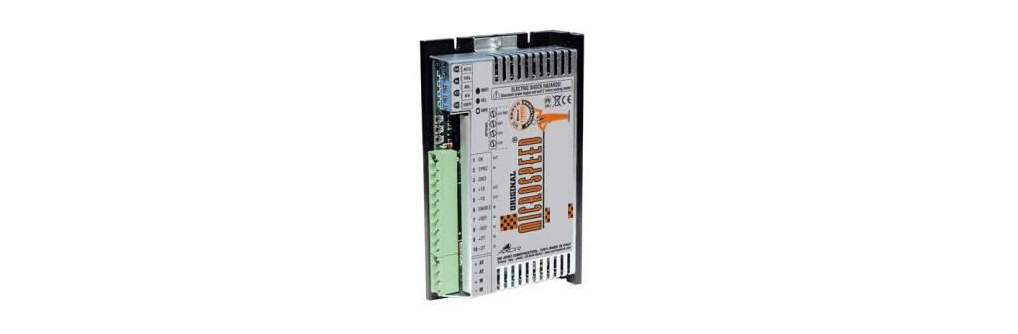

MicroSPEED – panel mount DC servo drives up to 1kW (MCS)

Axor’s MicroSPEED®  servo amplifiers are ultra compact modules and ideal for incremental motion control, velocity loop and positioning systems which require fast response, high torque at low speed, smooth speed control and high reliability. Power supply from 24 to 110 VDC with output current up to 10 Amps continuous / 20 Amps peak. Tacho-generator, armature, […]

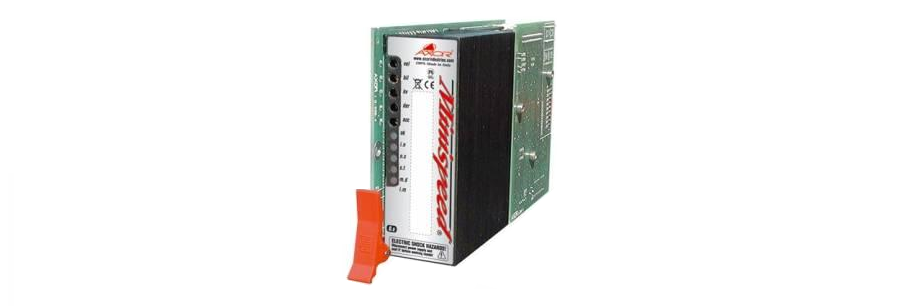

MiniSPEED eurocard DC servo drives up to 5kW (AX-D-MS)

Axor’s MiniSPEED ® is a comprehensive line of eurocard format servodrives for brushed DC servomotors. Power supply from 63 to 200 VDC, with output current up to 25 An/50 Apk. Ideal for incremental motion control, velocity loops and positioning systems, which require fast response, precision and smooth control. Powering them requires only a single VDC power […]

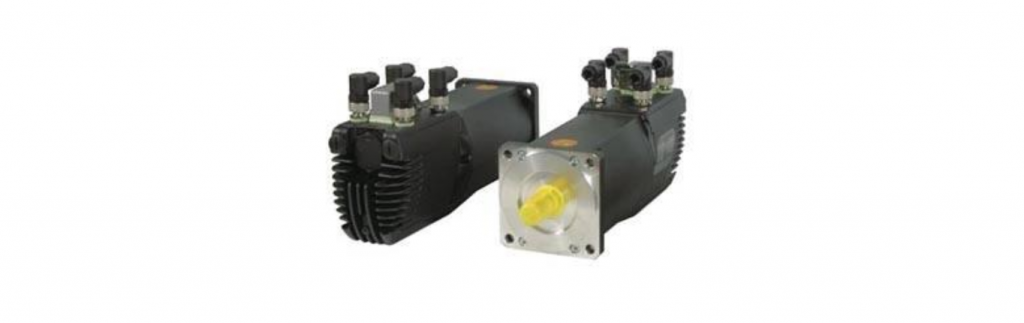

Fast-Back servo motor and drive combo

The Axor FastBack brushless servo motor with integrated drive provides all-in-one, fully digital torque / speed / position control. The motor torque range is from 1.1 to 7.5 Nm. 1ph, 230 VAC power supply direct at the motor. Motion controller with CAN BUS fieldbus interface and now also available with integrated multi-turn absolute encoder. The […]

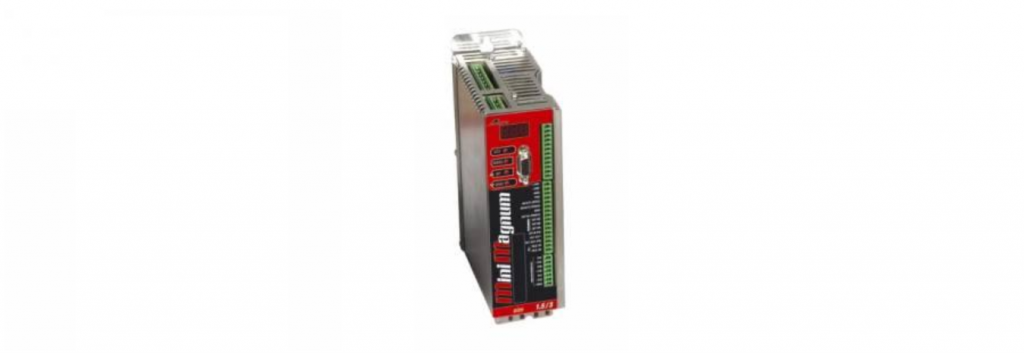

MiniMAGNUM, Digital Servodrive

The fully digital Mini Magnum compact servodrive from Axor Industries measures just 66 wide x 201 high x 141deep (all in mm) and weights 1.75kg. The Axor Mini Magnum servodrives are suitable for driving AC brushless servomotors with encoder or resolver feedback. These units can operate directly on a single or three phase mains power […]

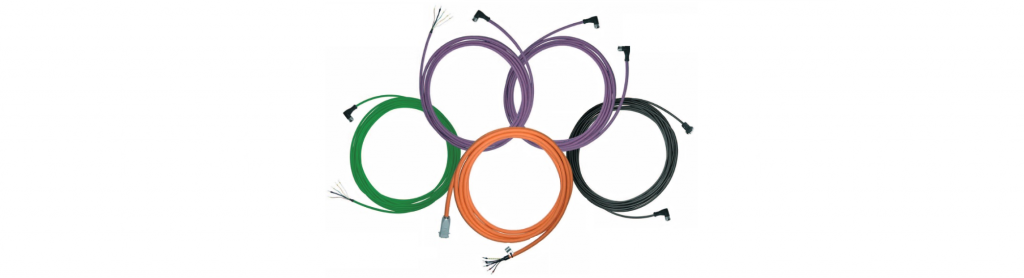

FastBACK Power Cables

Pre-assembled power & signal cables for “plug-n-play” connections to the Fast-Back® brushless servomotors. The CBLS cable must be used in accordance with the relevant service manual of the servodrive! All cables suitable for robotic applications. rque range is from 1.0 to 11 Nm. In conjunction with the MACK DRIVE servo drives, they offer an extremely […]

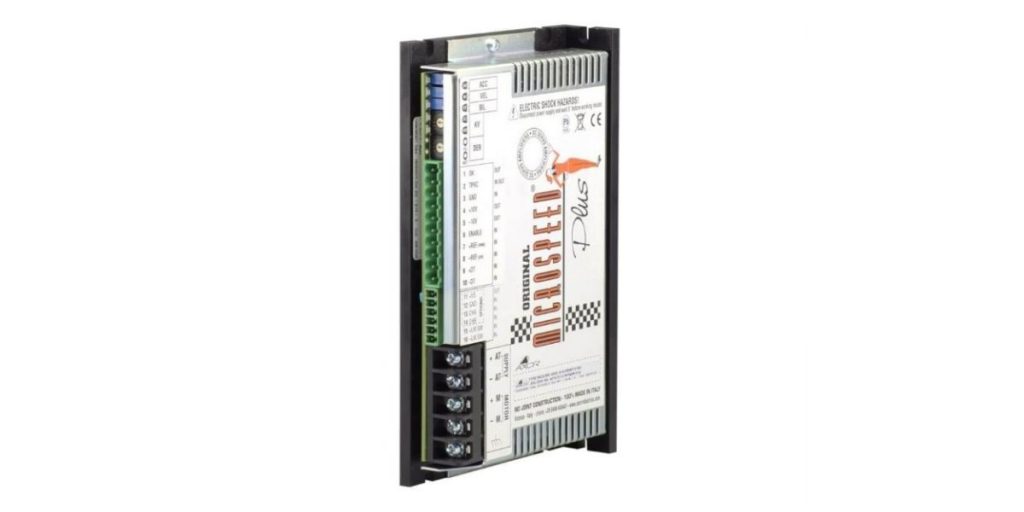

MicroSPEED plus – panel mount DC servo drives up to 4kW (MCSP)

The MICROSPEEDplus® servo amplifiers are ultra compact modules, the ideal solution for incremental motion control, velocity loop and positioning systems which require fast response, high torque at low speed, smooth speed control and high reliability. Power supply from 60 to 200 VDC with output current up to 20 Amps continuous / 40 Amps peak. Tacho-generator, […]
