Axor’s MicroB® servo amplifiers are ultra compact modules and ideal for incremental motion control, velocity loop and positioning systems which require fast response, high torque at low speed, smooth speed control and high reliability.

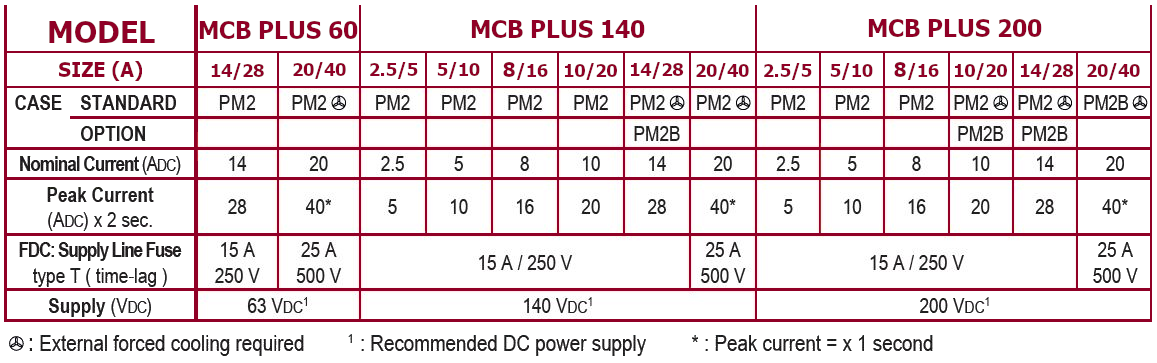

Power supply from 24 to 200 VDC with output current up to 20 Amps continuous / 40 Amps peak. Tacho-generator, armature, current mode and encoder feedback can be specified.

FEATURES
  • Driving motor range up to 8Nm
  • Three phase trapezoidal brushless, four quadrant operation
  • Highly efficient and reliable power MOSFET output stage
  • Single DC power supply
  • EC Commutation encoder Feedback
  • RD Differential reference Control Mode
  • Five LED (Red/Green) operating status signals

Options
  • AH Armature + hall Feedback
  • EH Encoder + external hall Feedback
  • H0 Hall (only) Feedback
  • RO Resolver Feedback
  • CD Clock + Direct
  • PD PWM + Direct
  • IO Demand current (torque mode)
  • EL Encoder Less
