The P378 Flexslice 8 Analogue Output module has eight programmable voltage range output terminals, each digitised to a resolution of 12 bit.
The 8 single ended outputs have a common 0V potential and are brought out to a single push-in connector.
| Module current consumption (EBUS 5V) | 200mA max |
| Number of Analogue Outputs | 8 |
| Power supply requirement | via the EBUS |
| Signal current | +/-5mA max |
| Resolution | 12 bit |
| Output impedance | 16 Ohm |
| Mounting | DIN rail mount |

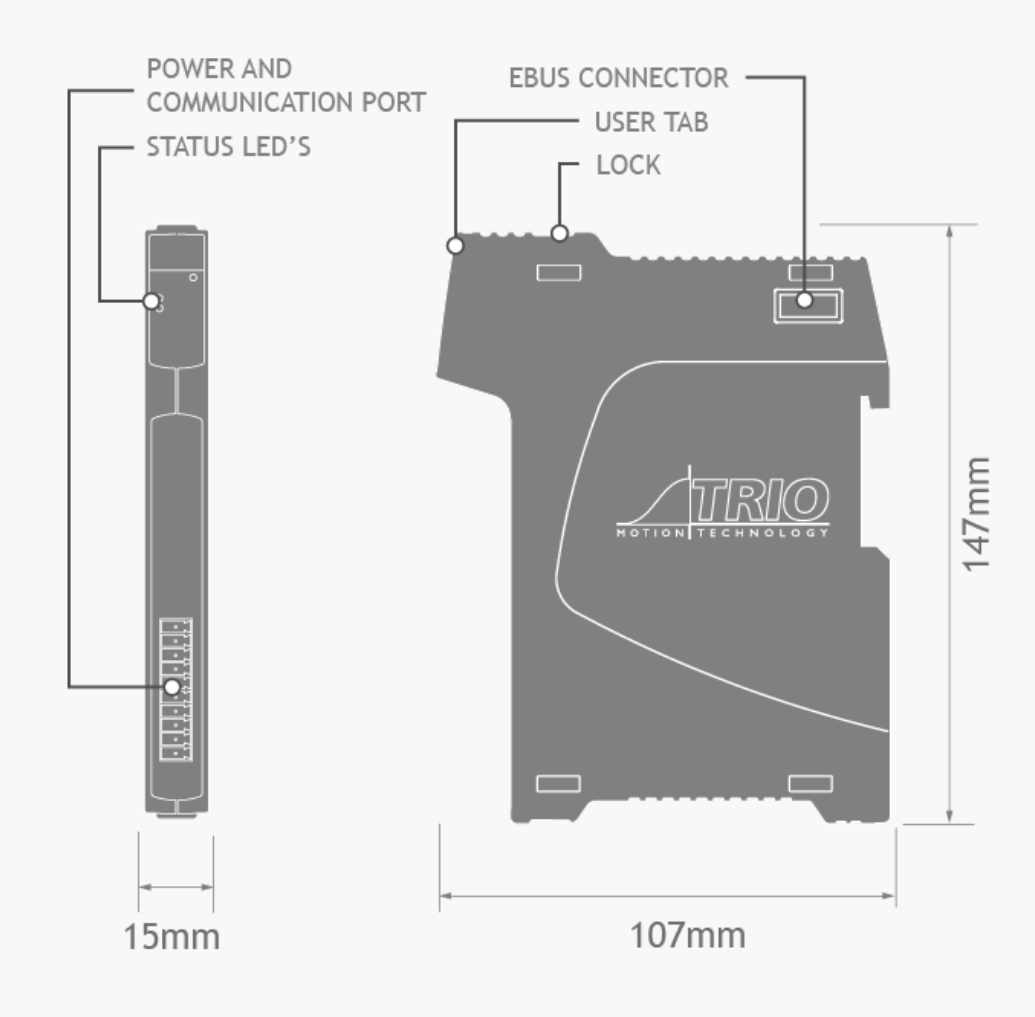

| Size (w x d x h) mm | 15 x 147 x 107 |
| Weight | 145g |
| Connectors | Push-in wiring terminals |
| EMC | EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions. |
| RoHs, CE, UL | Compliant |
