GEL 211 CSR – Test device for square-wave encoders

The GEL 211CSR test device performs simple data analysis whilst compiling reports and recording data. This device can be set to provide a full diagnosis of the sensors activity. The universal WLAN and EtherNET connection is independent of the operating system, making it easier to display on mobile terminals such as a tablet or PC. […]

Metronix – smartServo BL 4840-M/D decentralised solutions

To visualise the extreme performance of the smartServo BL 4000-M/D servo drive, we have chosen an example from nature: The ant can move objects that exceed its own body weight by a multiple. Just like the compact BL 4000-M/D, that moves for example a machine tool, a packaging machine or a robot precisely, dynamically and […]

Metronix – smartServo BL 4104-M/D decentralised solutions

To visualise the extreme performance of the smartServo BL 4000-M/D servo drive, we have chosen an example from nature: The ant can move objects that exceed its own body weight by a multiple. Just like the compact BL 4000-M/D, that moves for example a machine tool, a packaging machine or a robot precisely, dynamically and […]

Metronix – smartServo BL 4300C

The SmartServo drive series follows the tradition of Metronix to provide a simple to integrate, user friendly solution to even the most demanding servo applications. This starts with the compact drive housings that include many of the ancillary components necessary in other systems to meet CE compliance. This includes mains filters, line and motor chokes, […]

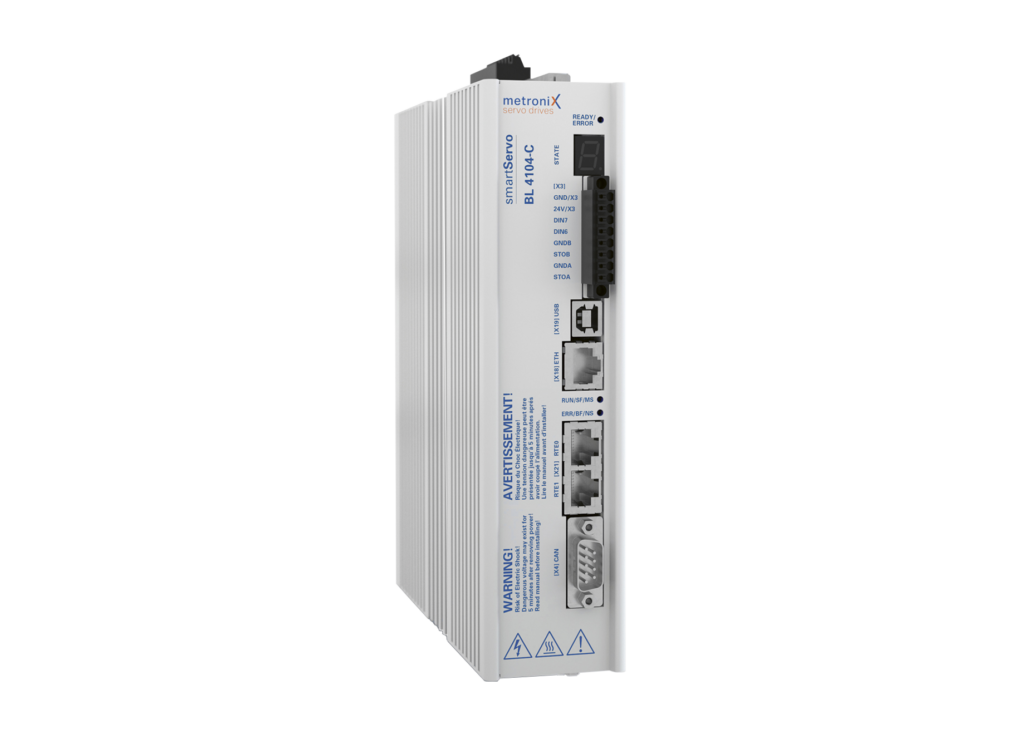

Metronix – smartServo BL 4100C

Metronix smartServo BL 4100C

The SmartServo drive series follows the tradition of Metronix to provide a simple to integrate, user friendly solution to even the most demanding servo applications. This starts with the compact drive housings that include many of the ancillary components necessary in other systems to meet CE compliance. This includes mains filters, line and motor chokes, […]

UniPLAY HMI (P843 and P844)

Trio’s unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7″ and 10″ colour display. The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments. No additional software is required; Uniplay HMI’s work with the Trio 4xx […]

Euro404 / Euro408 (P831, P832, P833 and P834)

The Euro404 and Euro408 Motion Coordinators are designed to provide a powerful yet cost effective control solution for OEM machine builders that are prepared to mount the unit and provide the power supplies required. The flexible axis ports can be configured in software as feedback devices or pulse direction outputs. As outputs they can be […]

MC403 / MC403Z (P821, P822, P823, P824 and P825)

The MC403 is a high specification Motion Coordinator using a high performance ARM11 processor, with three flexible axis ports and two Voltage outputs. The built-in Ethernet port allows programming and connection of common HMI and PLC protocols directly to the MC403. User programs can be written in Trio’s established multi-tasking TrioBASIC language using the powerful […]

MC405 (P826 and P827)

The MC405 is a high specification Motion Coordinator using a high performance ARM11 processor, with five flexible axis ports and four Voltage outputs. The flexible axis ports can be configured in software as feedback devices or pulse direction outputs. As outputs they can be used as pulse and direction with stepper or servo drives or […]

MC508 (P848 and P849)

The MC508 is a high specification Motion Coordinator using a high performance ARM Cortex A9 800 Mhz Processor, with eight Voltage outputs and eight flexible axis ports, that can be configured for up to sixteen pulse and direction output axes or eight closed loop servo axes. It boasts 128 MBytes of RAM; 32 of which […]

MC4N-RTEX (P906, P907, P908, P909, P910)

MC4N-RTEX. It is dedicated to running remote servo drives via Panasonic’s RTEX Real Time EXpress automation bus. It is based on an up-rated version of the 532MHz ARM processor with VFP3 and  is available with configurations from 2 to 32 axes making it ideal for high axis count machines or robotic applications. he MC4N-RTEX supports […]

PC-MCAT 64 (P760)

Trio’s PC-MCAT 64 is an innovative “Motion + PC Solution”. A powerful quad core Intel Atom processor is used to drive both a high performance motion controller and a compact PC that can run user applications under Windows. The PC-MCAT software uses a real-time extension to allow both Windows and the motion controller to run […]

Metronix – ARS 2300 series

The ARS 2000 servo positioning controllers (ARS servo 2nd generation) are intelligent AC servo inverters for operation direct from a three-phase mains supply. They are flexible and can be easily adapted to a number of different applications, with many adjustment and expansion options. In addition to speed and torque control, positioning, speed and angle synchronisation […]

Metronix – ARS 2100 series

The ARS 2100 servo positioning controllers (ARS servo 2nd generation) are intelligent AC servo inverters for operation direct from a single-phase mains supply. They are flexible and can be easily adapted to a number of different applications, with many adjustment and expansion options. Due to the integrated Power Factor Correction the device already fulfils the […]

ServoONE junior

This  compact, high performance digital servo drive  is optimised for the lower power output range, the ServoONE junior range comes with all the familiar technological benefits of a ServoONE drive. Full functional compatibility and continous handling within the ServoOne family is guaranteed at all times Standard Features • detailed motion control functions • interpolated positioning […]

GEL 211 B – Test and programming device for SinCos MiniCODERs

The Gel 211B test and programming device performs simple data analysis whilst compiling reports and recording data. This device can be set to provide a full diagnosis of the MiniCODERs activity. The universal WLAN connection is independent of the operating system, making it easier to display on mobile terminals such as a tablet or PC. […]
