The ARS 2100 servo positioning controllers (ARS servo 2nd generation) are intelligent AC servo inverters for operation direct from a single-phase mains supply. They are flexible and can be easily adapted to a number of different applications, with many adjustment and expansion options.
Due to the integrated Power Factor Correction the device already fulfils the standards according to EN 61000-3-2 (limitation of mains current harmonics). In addition to speed and torque control, positioning, speed and angle synchronisation with electronic gear, the CANopen protocol DSP402 allows the implementation of contouring controls with linear interpolation as well as time-synchronised multi-axis applications.
The ARS 2000 communicates with PLCs via Fieldbus like the integrated CAN Interface or Fieldbus options, e.g. Ethernet, PROFIBUS or SERCOS.
The servo positioning controllers can be used universally since they can be connected to various encoder systems and motor types.
With the menu-driven configuration tool Metronix ServoCommander (TM) and the automatic motor identification, the ARS 2000 quickly and comfortably adapts to your requirements.
Features
- 380 V DC bus voltage due to active PFC
- 2.5/5A and 5/10A rated / peak current
- Integrated EMC filter
- Integrated brake chopper, external brake resistance can be connected
- Separate 24 V DC supply for controller unit
- 3 analogue set point inputs, 1 x 16 bit / 2 x 10 bit
- Fieldbus interface CAN with CANopen user profile as per DSP402
- Control via digital I/O
- UL certification in preparation
Highlights
- Integrated Power Factor Control (PFC)
- Single phase servo drive to 1kW
- Direct-on-line operation
- Simple commissioning through software wizard
- Expansion for I/O, Fieldbus, Feedback
Fieldbus options
RS232 (RS485) and CANopen (as per DSP 402) are standard interfaces on the ARS 2000 drives family. In addition the drives feature 2 extension slots, which can be populated with any of the following:
- PROFIBUS-DP
- Ethernet (TCP/IP)
- Sercos
- Industrial Ethernet (in preparation)
- DeviceNet (in preparation)
- Additional digital I/O
Universal encoder interface
The ARS family of drives can operate with rotary, linear and torque motors alike. Suitable feedback devices include, Resolver, Incremental Encoder, SinCos encoder (single-/ multiturn) with Hiperface, high resolution encoders as well as single-/ multiturn absolute encoder with EnDat interface.

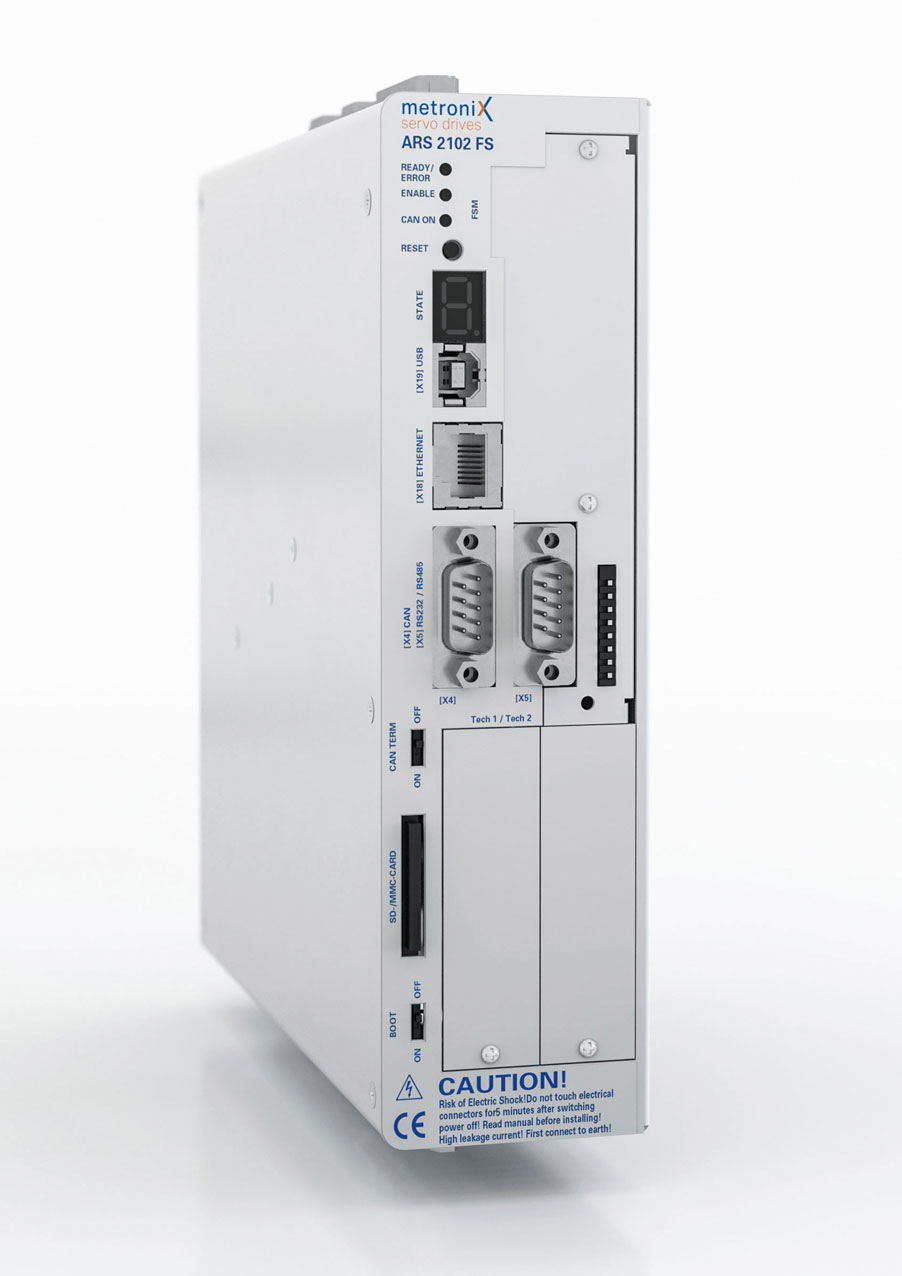

Technical Data for ARS 2102, ARS 2105 and ARS 2108
| Features | ARS 2102 | ARS 2105 | ARS 2108 |
|---|---|---|---|
| Supply voltage | 1 x 100...230 VAC [± 10 %], 50...60 Hz | ||
| Alternative DC Supply | 60...380 VDC | 60...320 VDC | |
| Control voltage | 24 VDC [± 20 %] (0,55 A) | 24 VDC [± 20 %] (0,65 A) | |
| DC link voltage | 60...380 VDC | 60...320 VDC | |
| Clock frequency | Variable clock frequencies up to 20 kHz, data for operation at 1 x 230 VAC [± 10 %], 50 Hz | ||
| Output power | 0.5 kVA | 1.0 kVA | 1.5 kVA |
| Max. output power for 5 s | 1.0 kVA | 2.0 kVA | 3.0 kVA |
| Rated output current | 2.5 Aeff | 5 Aeff | 8 Aeff |
| Max. output current for 5 s | 5 Aeff | 10 Aeff | 16 Aeff |
| Max. output current for 0.5 s | 10 Aeff | 20 Aeff | 32 Aeff (fel ≥ 3 Hz) 4) |
| Current derating from | 12 kHz | 10 kHz | |
| Internal brake resistor | 60 Ohms | 37 Ohms | |
| Continuous power / pulse power | 10 W / 2.8 kW | 20 W / 2.8 kW | 25 W / 3.9 kW |
| External brake resistor | >50 Ohms | >25 Ohms | |
| Holding brake | 24 VDC, max. 1 A | ||
| Dimensions servo drive H x W x D | 200 x 54 x 200 mm | ||
| Weight | 2.0 kg | 2.1 kg | 1.8 kg |
Technical Features
| Features | Values |
|---|---|
| EMC directive | 2014/35/EU verified by application of the harmonised standard EN 61800-3 |
| Low-voltage directive | 2014/30/EU verified by application of the harmonised standard EN 61800-5-1 |
| cULus certification | UL 508C, C22.2 No. 274-13 |
| Admissible temperature ranges | Storage temperature: -25 °C to +70 °C, operating temperature: 0 °C to +40 °C+40 °C to +50 °C at reduced power 2,5 % / K |
| Admissible installation height | Mounting height max. 2000 m above msl, above 1000 m above msl with power reduction 1 % pro 100 m |
| Humidity | Relative humidity up to 90 %, not bedewing |
| Protection degree | IP20 |
| Protection class | I |
| Pollution degree | 2 |
| Inputs | 10 x digital in (24 VDC), 3 x analogue in (± 10 VDC, 2 x 10 Bit, 1 x 16 Bit) |
| Outputs | 4 x digital out (24 VDC), 1 x digital out (24 VDC) for holding brake2 x analogue out (± 10 VDC, 9 Bit) |
| Interfaces | Standard: USB 2.0, Ethernet, RS232 / RS485, CAN-Bus (CANopen DSP 402)Optional: EtherCAT, PROFIBUS-DP, PROFINETDigital terminal extension EA88 |
| Encoder evaluation | Universal encoder interface for motors with: resolver, analogue and digitalincremental encoder with/without commutation signals, SinCos encoder (single-turn/ multi-turn) with HIPERFACE®, HIPERFACE DSL®, high-resolution Heidenhainencoders, absolute encoder with EnDat 2.1 and 2.2 |
