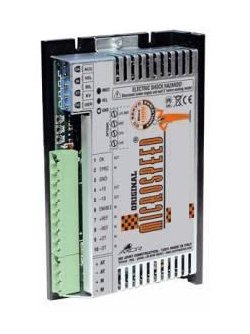

Axor’s MicroSPEED®  servo amplifiers are ultra compact modules and ideal for incremental motion control, velocity loop and positioning systems which require fast response, high torque at low speed, smooth speed control and high reliability.

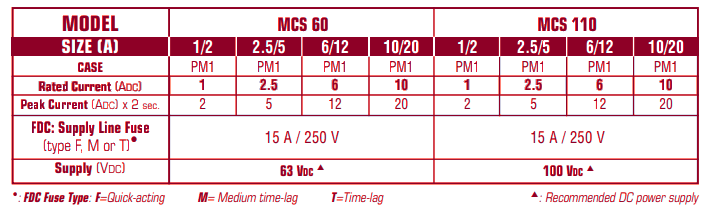

Power supply from 24 to 110 VDC with output current up to 10 Amps continuous / 20 Amps peak. Tacho-generator, armature, current mode and encoder feedback can be specified.

FEATURES
  • Ideal for retrofits & high disturbance applications
  • Standard version – easily configured by resistor & solder bridges
  • Factory ready configuration with spec code
  • 5 trimmers for fine tuning
  • 4 LED’s for status signals
  • Flat or side mount
  • 2 Limit switch inputs

CONTROL MODE
  • ±10Vdc analogue speed
  • ±10Vdc analogue torque
  • PWM + Direction

FEEDBACK
  • Tachogenerator
  • Encoder
  • Armature
  • Sensorless
